Please note you can’t fit pard 008S on this.
The bracket cut on this is an 8mm new pard 008S with a 9mm bracket, and you may Machine that to 9mm.
Main benefits of using this mount:
- NV scope:

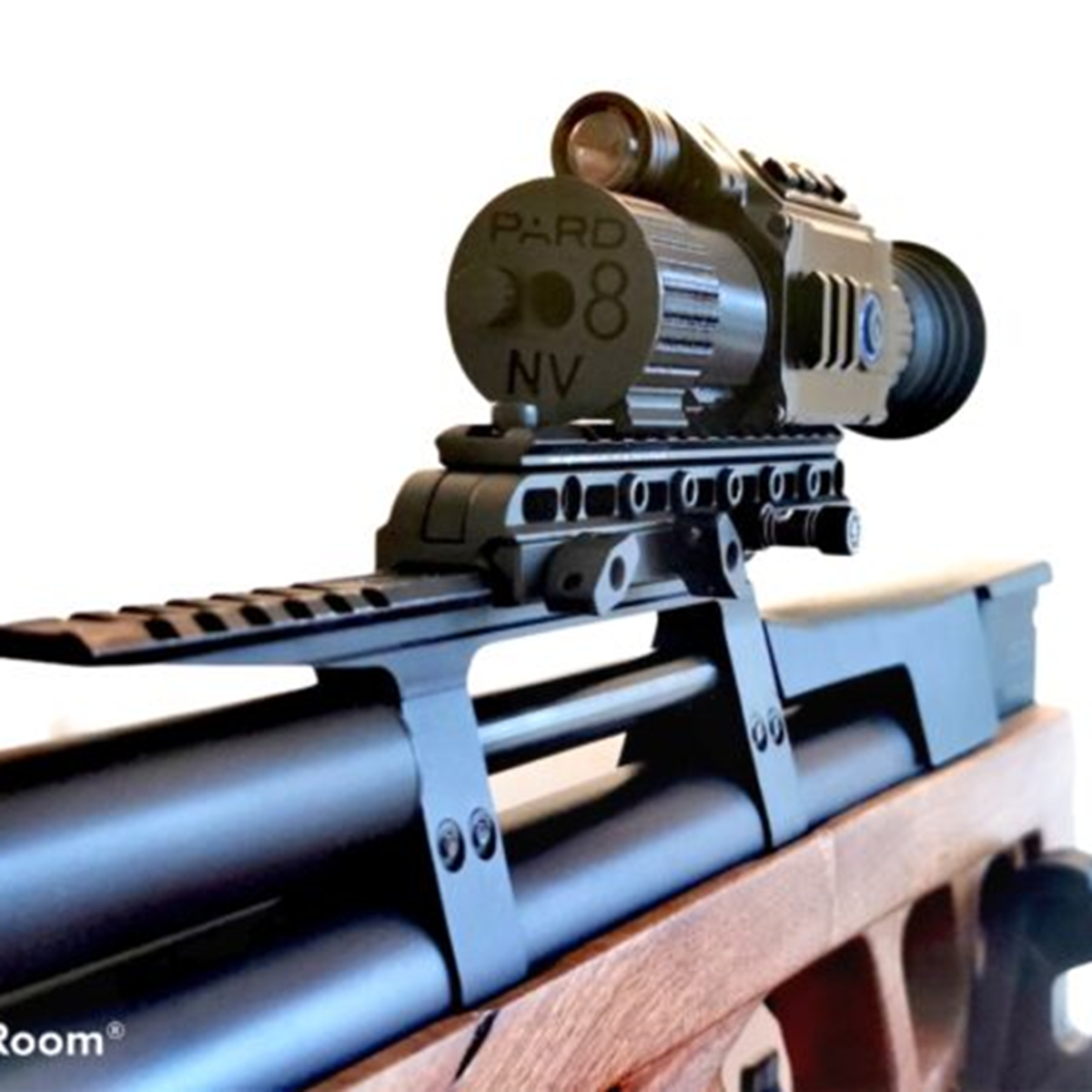

- a. directly fitted to the Pard 008 008P 008LRF
- Adjustability:
- FULLY ADJUSTABLE, FORWARD or BACKWARD, ELEVATION, WINDAGE, EYE RELIEF, AND HEIGHT ADJUSTMENT, that allows the scope to move vertically and horizontally along a guided path and lockable in different positions, using 3x or 4x or 5x screws on the side of this mount.
- Combined with Scope cam:
- This mount allows users to adjust their scope forward, backward, or vertically to align the scope with their eye relief or eye level.
- Long-range shooting:
- Long-range before running out of adjustment on the turrets
- Multiple rifles:
- This system can be used to install scope mounts for the owners of multiple rifles, requiring one scope for all of their rigs by installing one Infinity mount to each rifle.
- Durability:
- This product is robust enough to be installed on heavy recoil rifles, up to .308 caliber.
- Technical information for the new ‘INFINITY’ mount:
- Length: 170mm
- Profile height from the bottom of the mount to the middle of the top Picatinny rail, 21mm.
- Total height: 30.30mm
- Adjustable Height: 4.5mm
- Weight: 225 grams
- Product includes:
- 1x Infinity Picatinny mount
- 3 x Allen keys (two different sizes)
- 5 x side screws
- 1x m5 spring screw
- 4x pard 008 attachment screws
- 1x Waterproof case
