This well-designed scope mount allows the scope to move vertically along a guided path. The mount is lockable in different positions using two screws.
The mount can be used as a low profile or adjusted to the high profile too if your scope objective its too close to your rifle barrel or shroud.
This practical patent helps shooters who enjoy long-range shooting and often run out of adjustment clicks on their turrets.
The mount can also come in handy if you have not been able to use your favorite scope due to lack of space between the rings or the unusual position of your dovetail or Picatinny rail on your gun.
We are very proud of this product as it has been becoming a “must-have” solution among people who love their bullpups.
The design of the mount is dedicated to people who want to improve their performance contrasting with what ordinary mounts allow to do. By keeping the front mount at its lowest and elevating the rear mount to the highest point, you can zero in your gun far beyond what standard mounts allow you to do, without using the clicks on your turrets, hence keeping the optical center of your scope intact (the ideal situation for long-range shooting).
Details:
Height: 65 mm to 69.5 mm (adjustable)
Profile height: 21 mm
Adjustable height: 4.5 mm
Weight: 92 gm each one
Centre of the ring to the bottom of the rail: 38 mm in the closed position
Centre of the ring to the bottom of the rail: 42.5 mm in the open position
Ring size: 34 mm / 30 mm
Rail size: 22 mm Picatinny

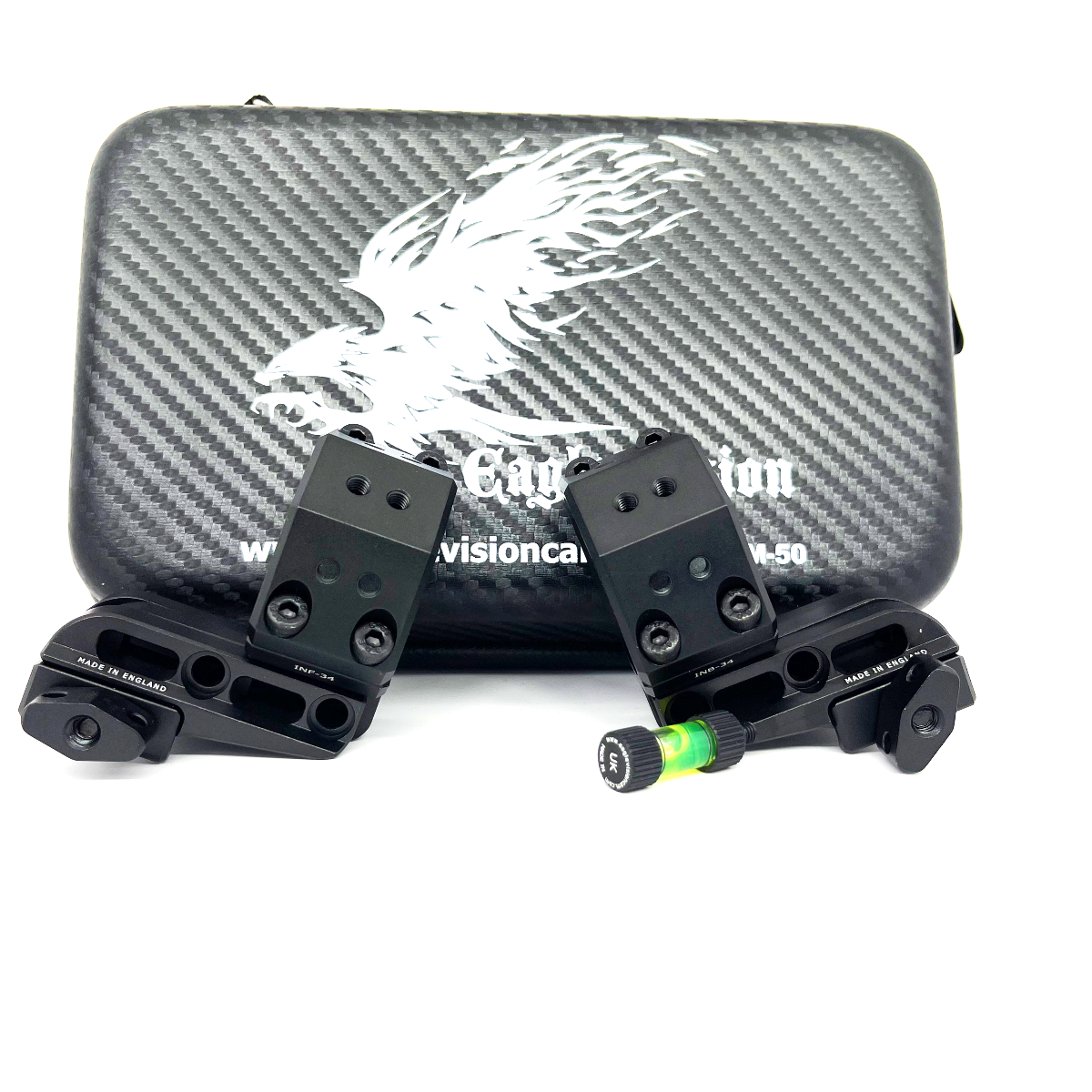

Item includes:
2x infinity scope mounts
2x Allen key set – different sizes
4x small spear screws
2x large spear screws
1x waterproof case
Pressure calculation:
Ring screws maximum Torque,
15-20 Inch-pounds Force to 1.68-2.25 NM Newton Meters.
Adjustable side screws maximum Torque,
53-71 Inch-pounds Force to 6-8 NM Newton Meters.
Picatinny nuts maximum Torque,
53-71 Inch-pounds Force to 6-8 NM Newton Meters.
Available Accessories:
Mounting adapter: converting 22 mm Picatinny to 11mm dovetail
Ring adapter: converting 30mm ring to 25mm ring
Accessory top ring with Picatinny rail on top of each ring (useful for mounting a torch)
Bubble levels
Extra Picatinny bracket which can be added to the side of the mounts (4 can be added easily)
