D10SV24FDIMLX (Dual, MIL, Tactical, Illumi, Shuriken lock)
Tactical Model (Illuminated)

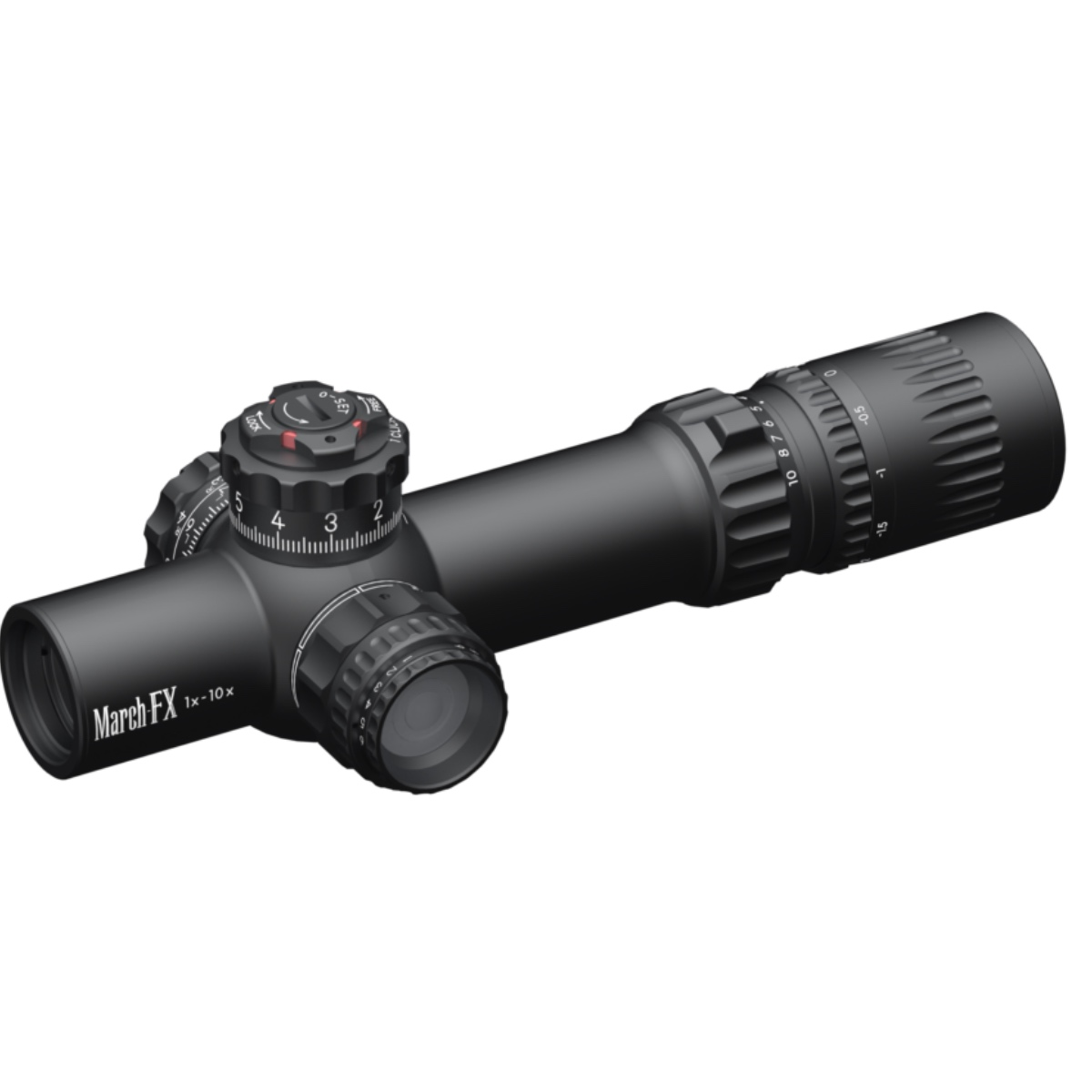

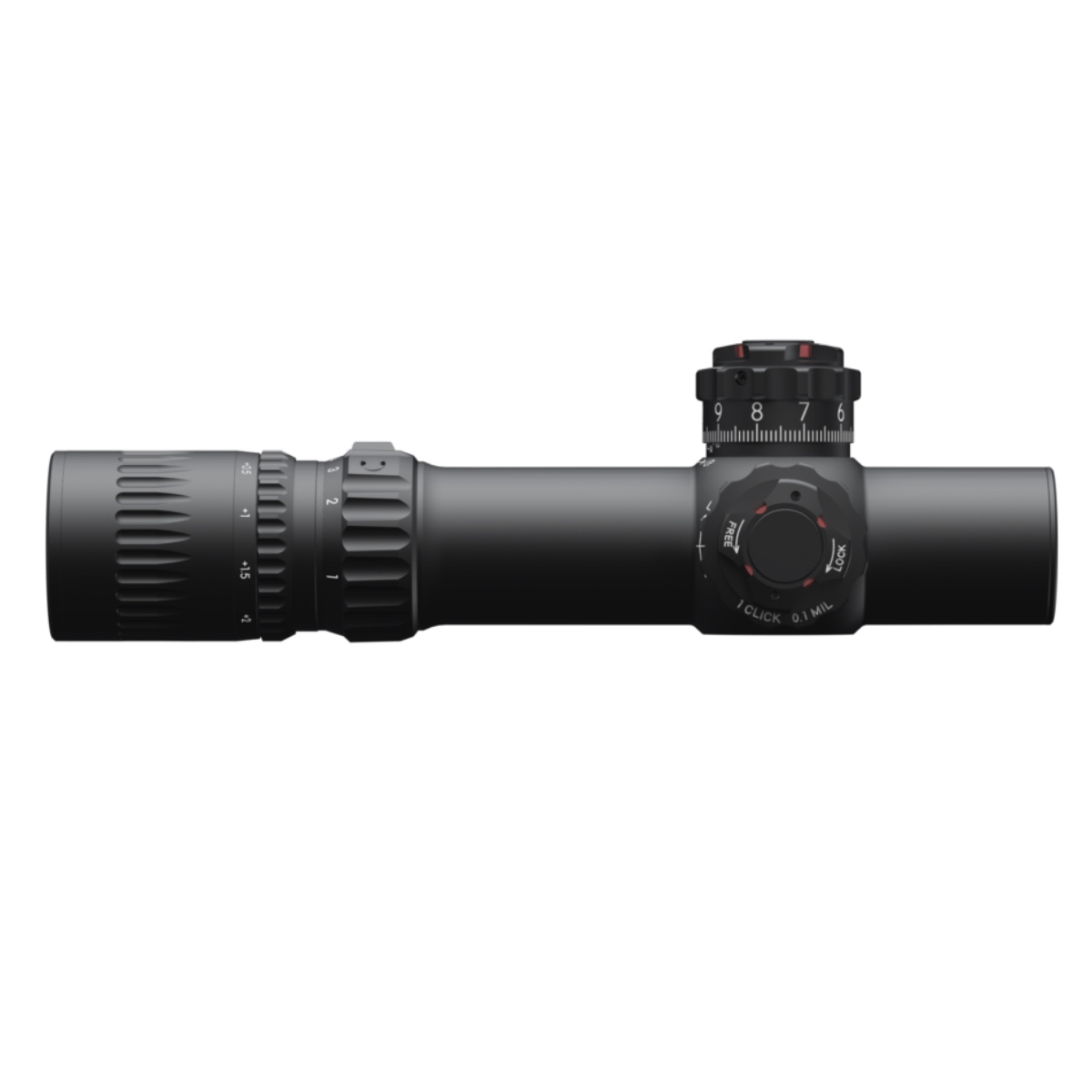

March-FX 1-10x42mm Shorty Riflescope with Shuriken lockable turrets
・10X Zoom in FFP, MIL
・Uniform thickness: 34mm diameter body tube
・24mm objective lens
・Focus from 10 yards to infinity
・Dual reticle (best of both FFP and SFP reticles)
・Daylight bright fiber dot illumination
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic parts except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・6 level illumination module
・Top quality multi-lens coating where the transmittance is very near 100%
・Water repellent lens coating

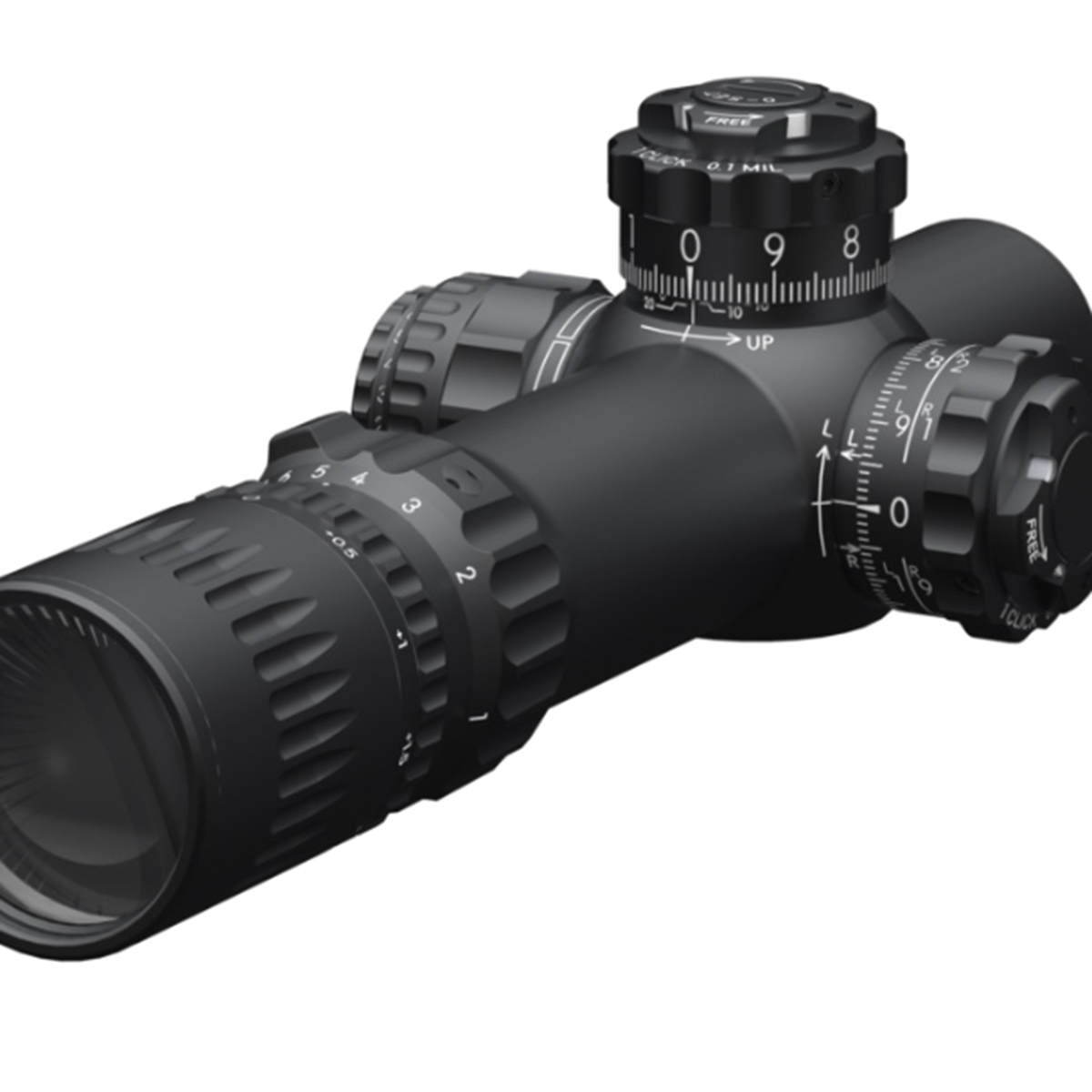

・Shuriken lock elevation and windage turrets
Technical Data
- Magnification1 -10x
- Effective Lens Diameter 24mm
- Body Tube Diameter 34mm
- Exit Pupil 8.6mm( 0.34inch) 2.4mm(0.094inch)
- Field of View (real) degree19.2° 1.92°
- ft/100yd 10.1ft
- m/100m 33.83m /3.35m
- Eye Relief 72‐102mm /72‐100mm
- 1 Click Adjustment 0.1MIL
- Elevation Travel 50 Mil
- Windage Travel 25 Mil
- Focus Distance 0yd - infinity

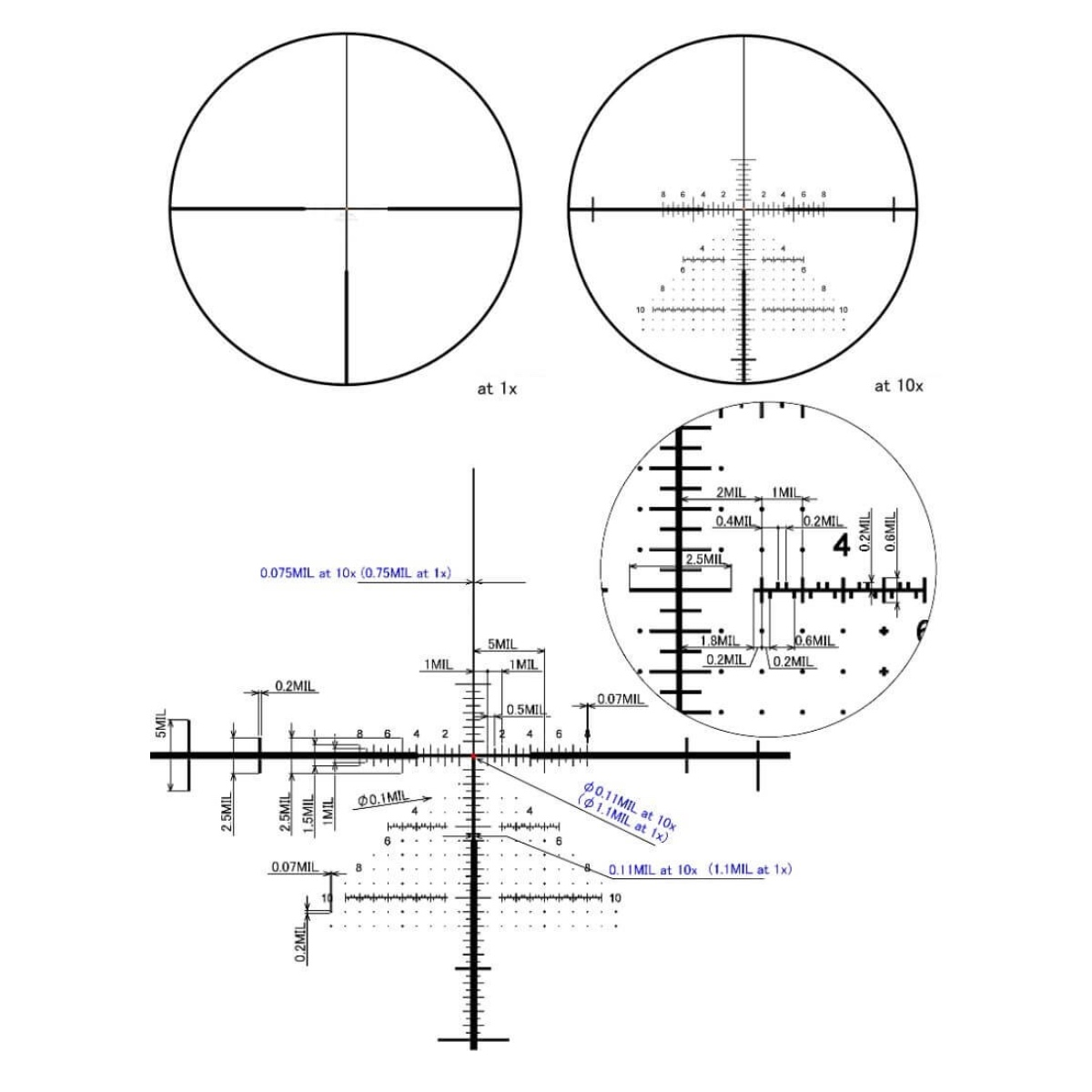

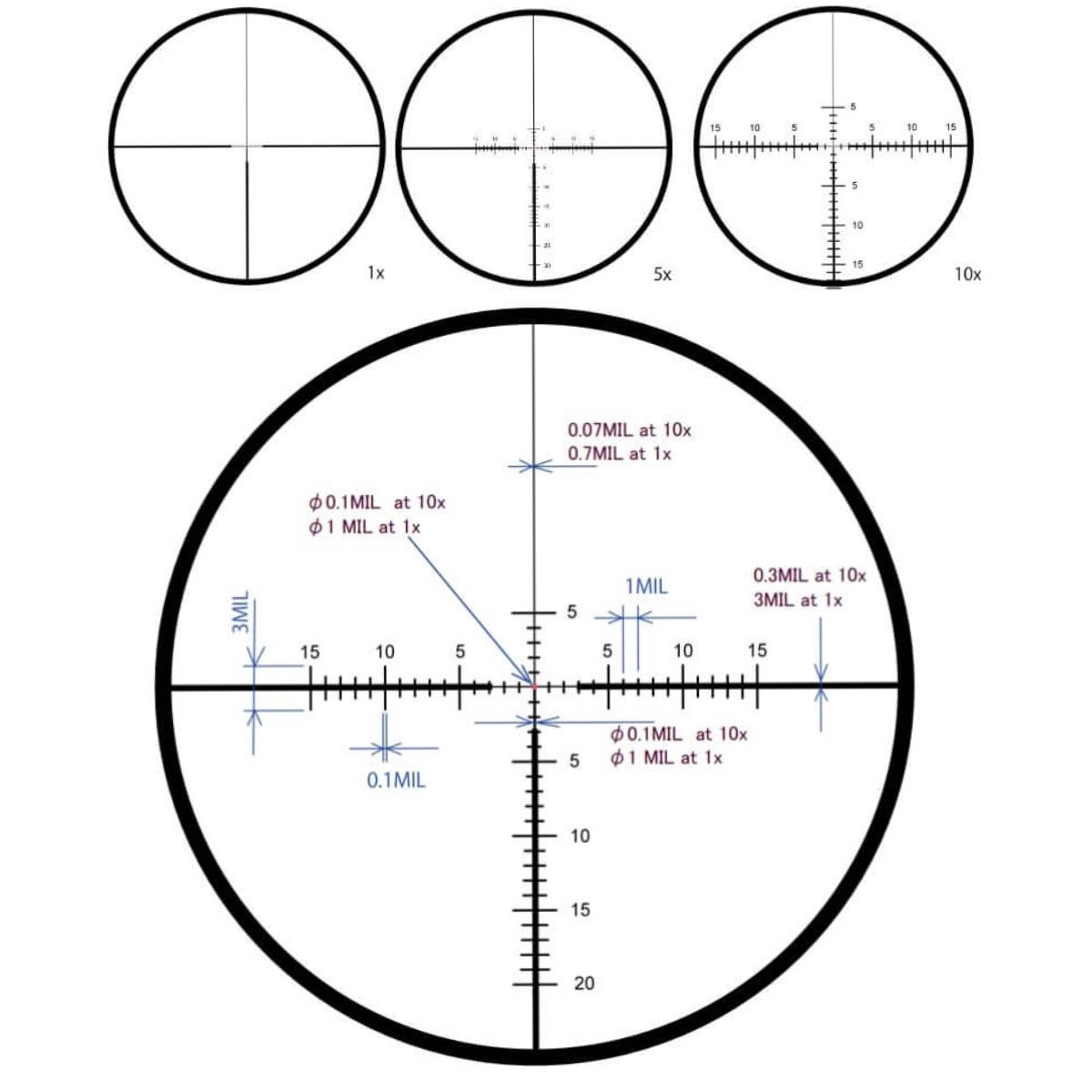

- Reticle
- In the boxFlip caps (Objective Lens, Eyepiece)
- Fast lever
- Lens cloth
- Hex key
