The Javelin 4.5-30x56 FFP riflescope is dedicated to tactical long-distance shooters.
It is a combination of such features as: high quality ED optics, large adjustment turrets thanks to 34mm tube, 0.1MRAD click, both turrets lockable, illuminated aiming point, unique SMR-1 and SMR-2 FFP reticles, zero-stop, throw lever. The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters. All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
- Serie:No
- Magnification [x]:4.5 - 30
- Minimum magnification[x]:4.5
- Maximum magnification[x]:30
- Objective lens diameter [mm]:56
- Reticle:SMR-1, SMR-2
- Illuminated reticle:Yes
- Linear field of view at 100 m [m]:8.2 - 1.3
- Eye relief [mm]:100
- Water resistance:0.3 kg/cm2
- Weight [g]:1 036
- Length [mm]:388.6
- One click:0.1 MRAD
- Max. elevation / windage adjustment range :30/32 MRAD
- Tube:34 mm
- Parallax adjustment:Side focus (25 m - ∞)
- Diopter adjustment range:-2D / +2D
- Reticle position:First focal plane(FFP)
- Functional temperature range [°C]:-20 — +71
- Nitrogen filling:Yes
- Remarks:ZeroLock, ED Glass, Throw levers

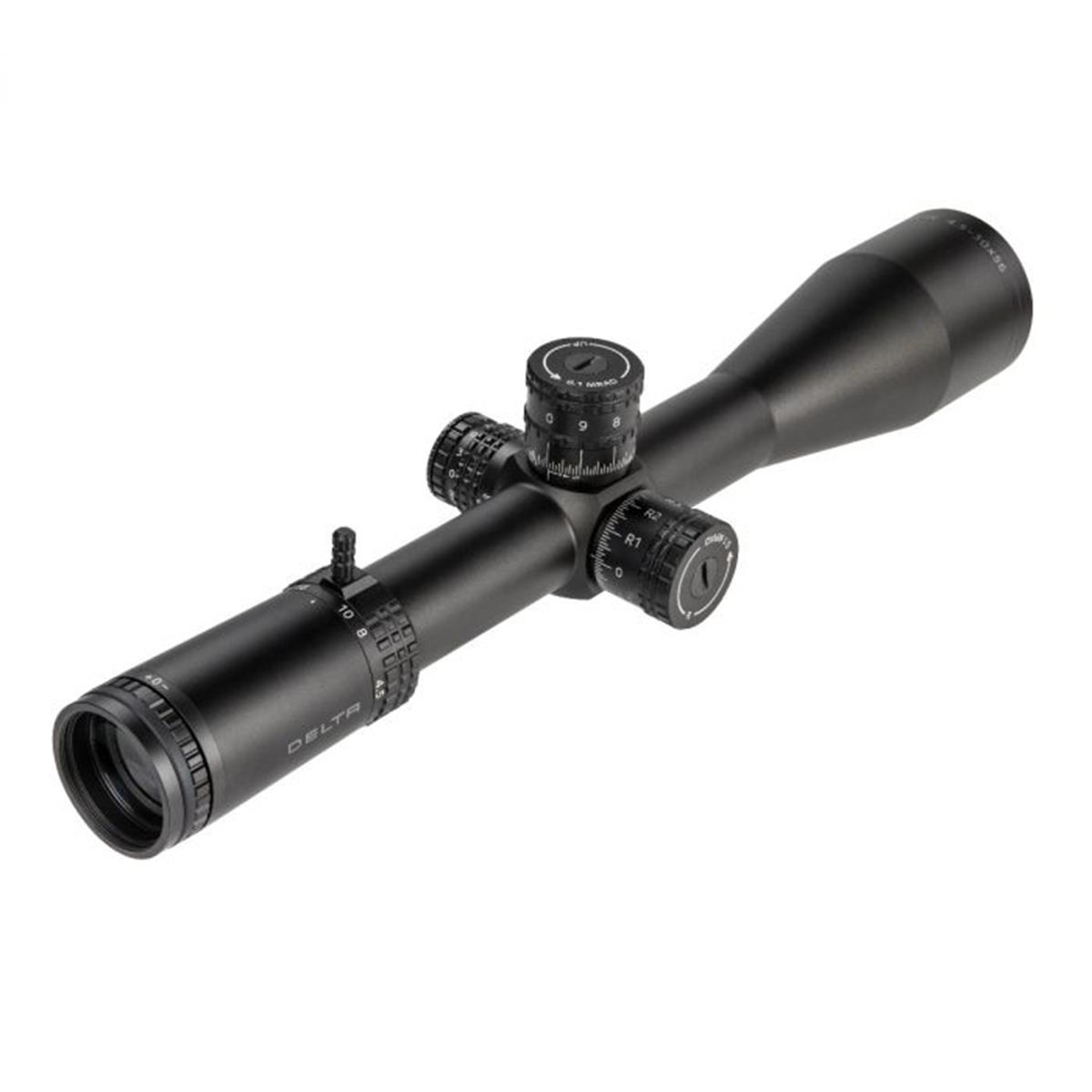

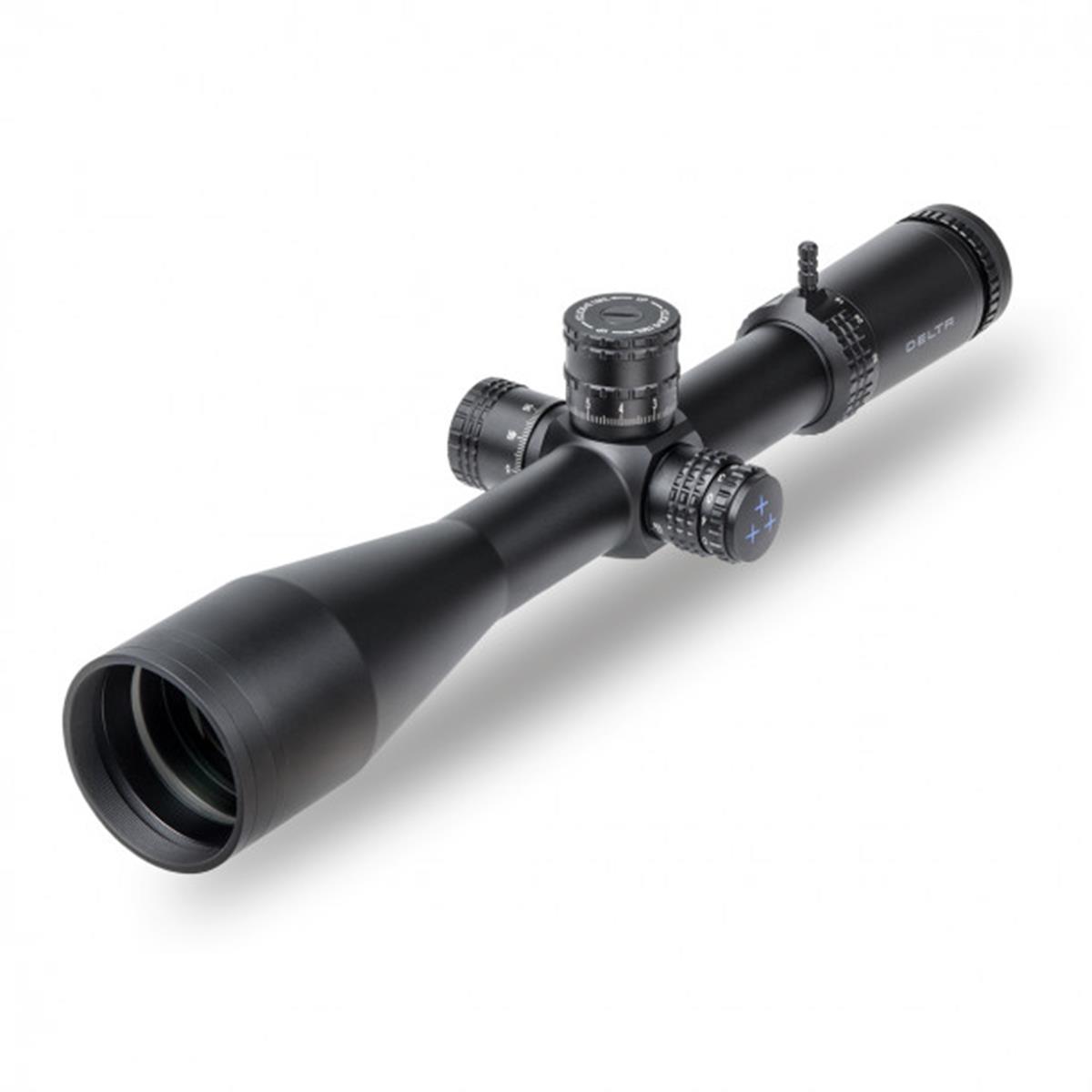

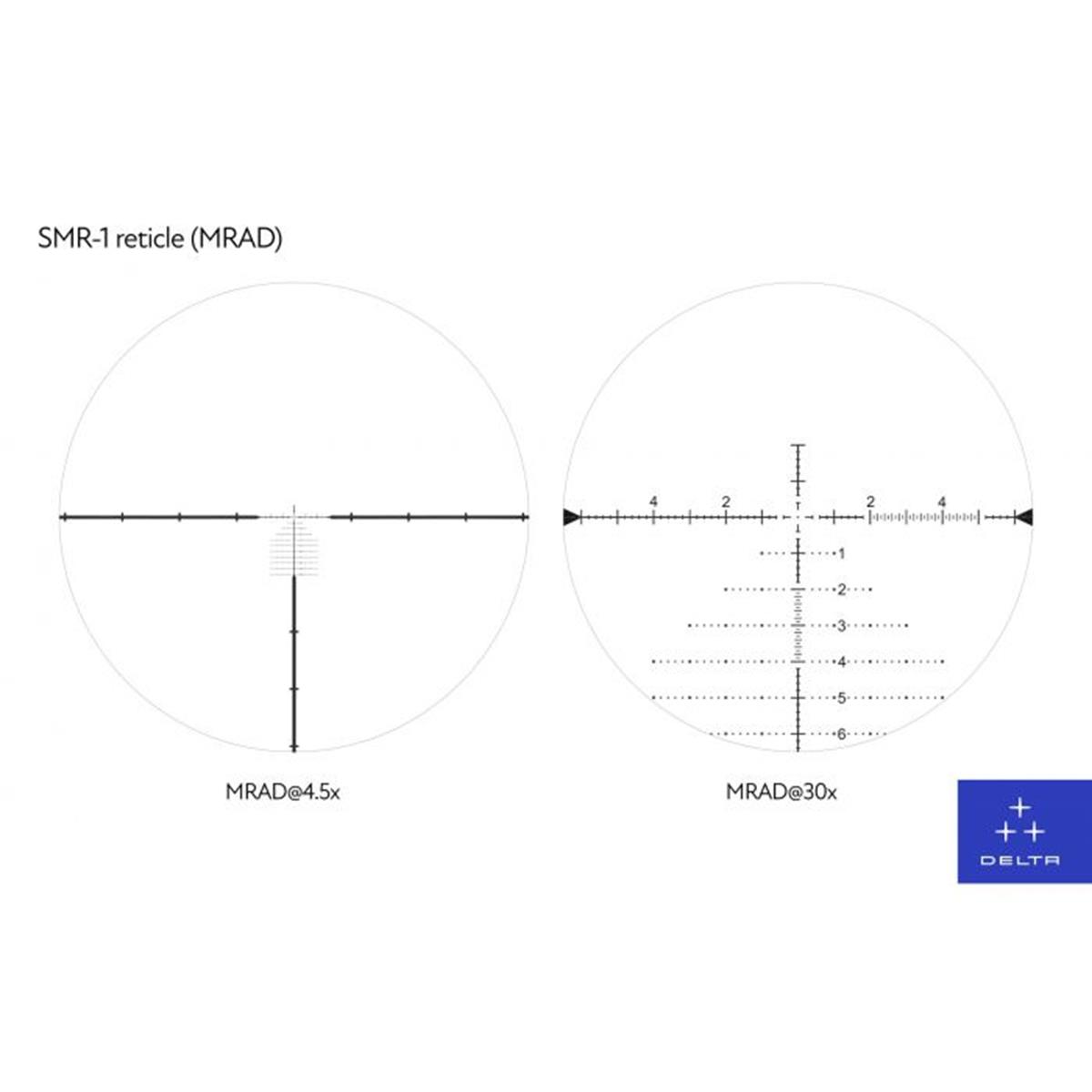

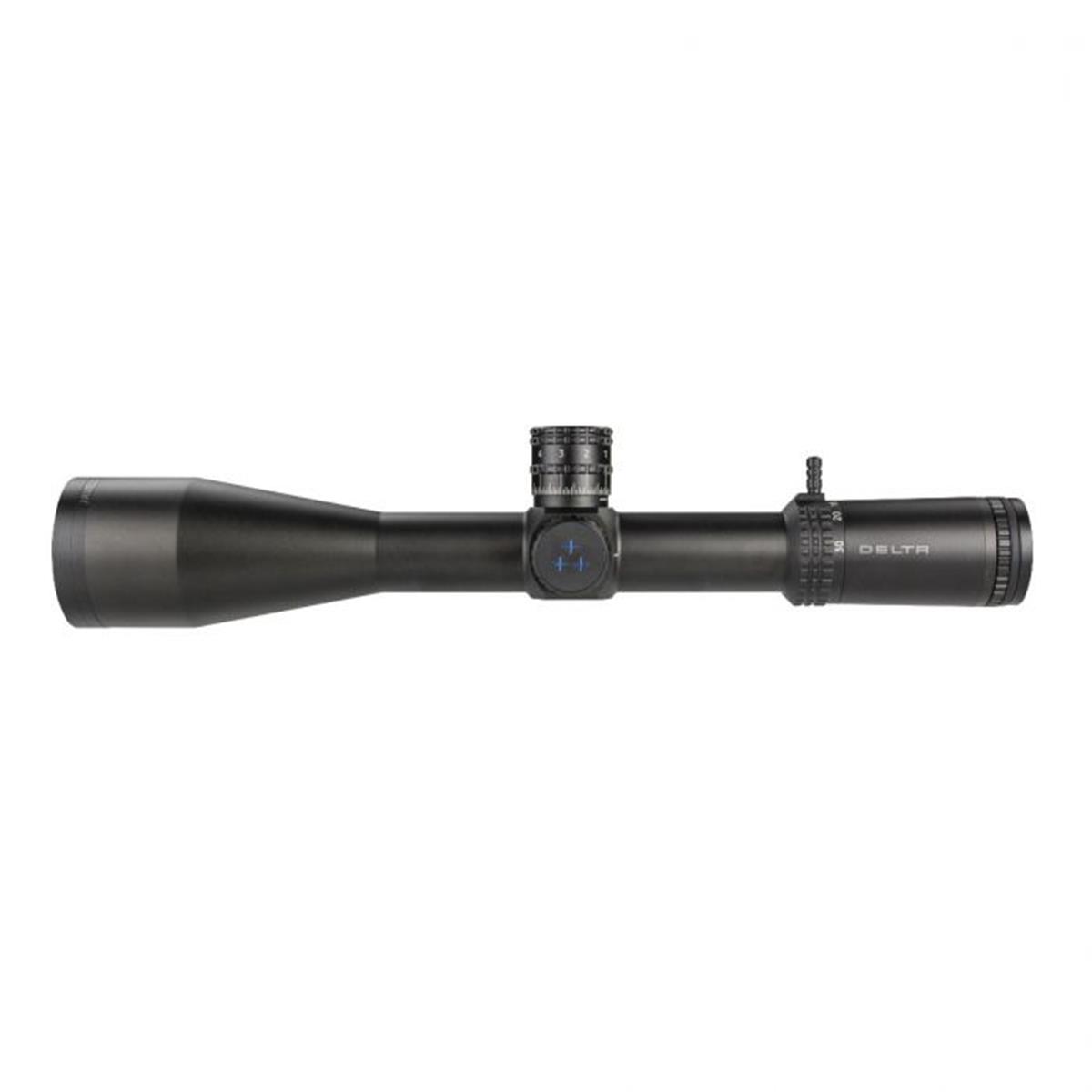

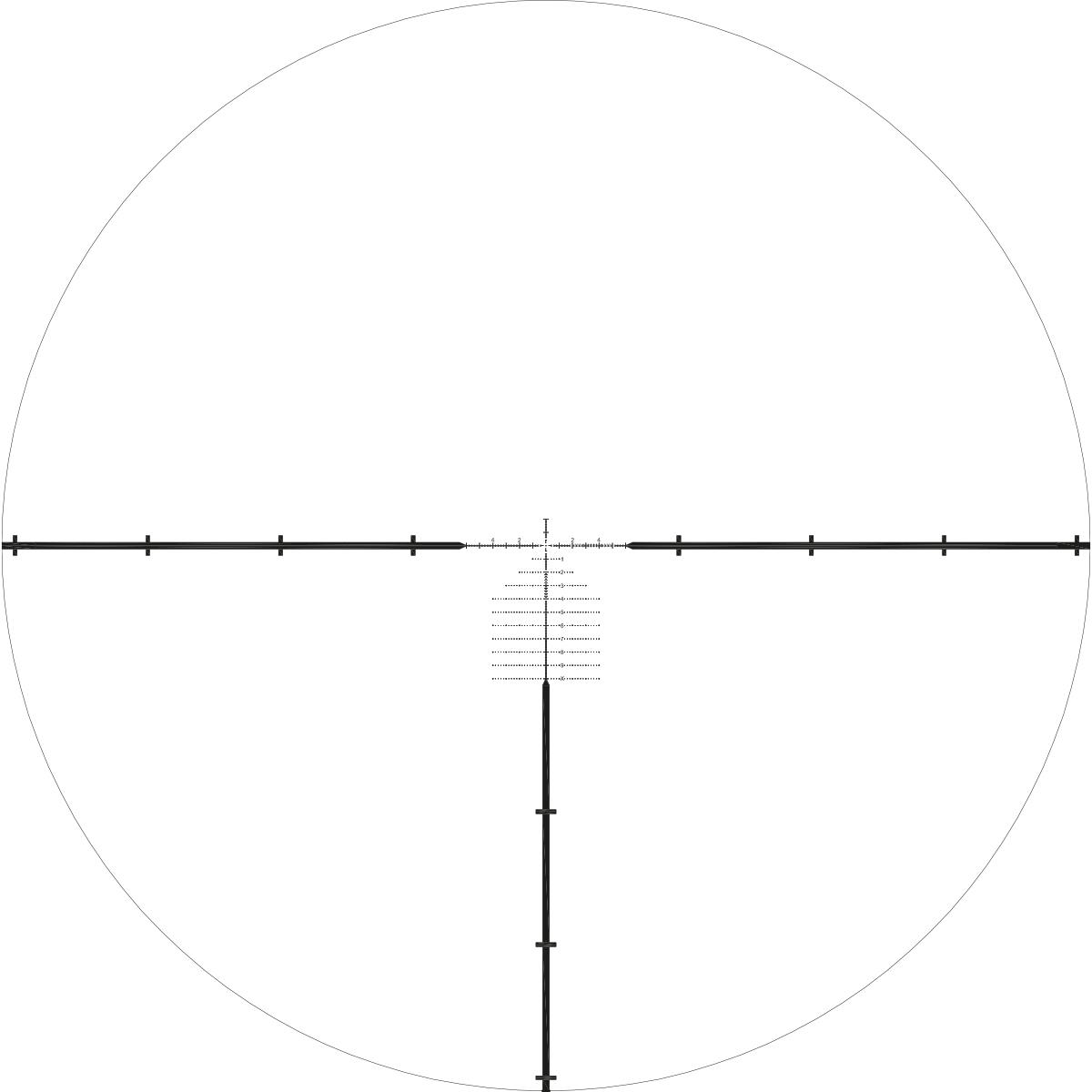

Delta Javelin 4.5-30x56 FFP SMR-1 IR Rifle Scope
The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters. All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
The SMR-1 is a holdover reticle made to fit the needs of long-range, field and PRS-style shooters, however, due to the illuminated centre, the reticle is also ideal for low-light hunting.
The reticle features options such as an open-top, a floating centre dot, 0.2 mil hash marks and an integrated free-floating ruler with 0.1 mil hash marks for easier target measurement
.

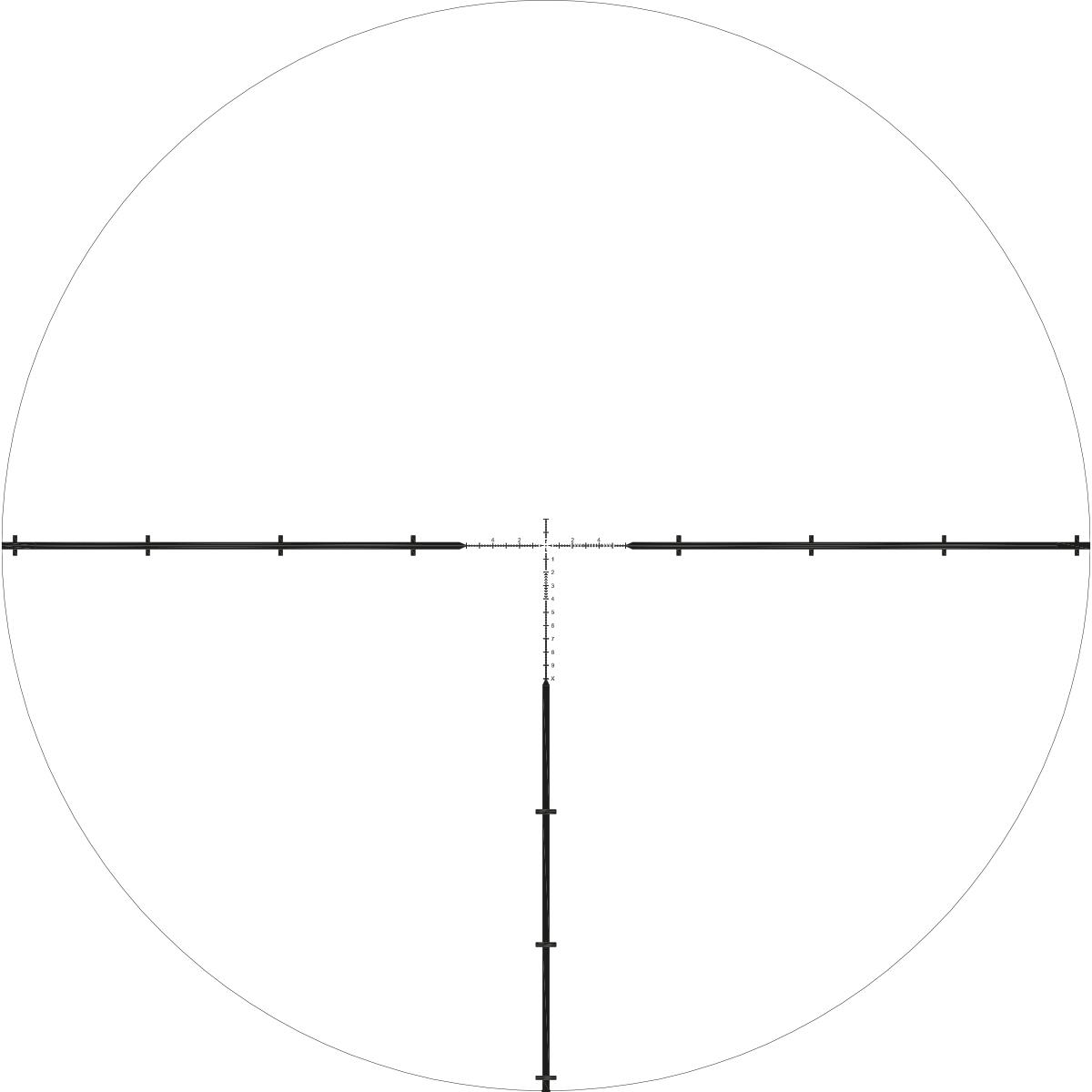

Delta Javelin 4.5-30x56 FFP SMR-2 IR Rifle Scope
The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters. All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
SMR-2 is more of a crossover reticle between hunting and shooting and it has all the same features as the SMR-1 but with an added Horus style windage markers” This feature is a plus when using holdover in in windy conditions
